| Brand Name: | HUAXING |
| Model Number: | RIF83 |
| MOQ: | 1 |
| Payment Terms: | T/T |

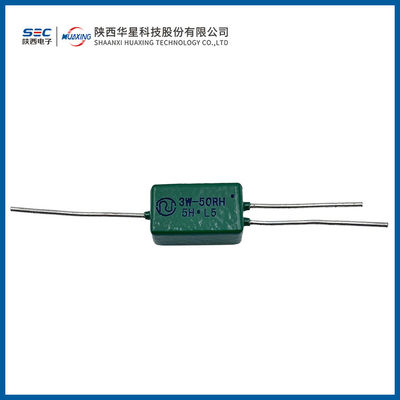

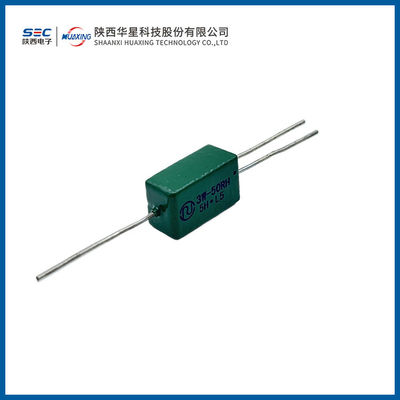

RIF83 type resistor network attenuator
1. Purpose and characteristics:
small size, good stability, high resistance accuracy, strong power load, good linearity, used in pulse electronic equipment and other pulse electronic circuits.
2. Packaging form:
green insulating paint coating
3. External size:
| model |
specified power |
outline dimension (mm) | Lead-out end size (mm) |
maximum weight |
|||||
| Lmax | Wmax | Hmax | φ | L1 | L2 | L3 | |||
| RIF83 | 3W | 22 | 11 | 13 | 1.0±0.05 | 30±2 | 25±2 | 30±2 | 7g |
4. Main technical indicators:
| model |
specified power |
IO nominal candle-power |
resistance allowable deviation |
voltage discount factor |
Decay coefficient accuracy |
trial voltage |
damping voltage |
impulse withstand voltage |
| RIF83 | 3W | 50Ω | ± 3% | Five times | ± 3% | 10V | 2V | 1Kv |
|
|
