| Brand Name: | HUAXING |
| Model Number: | RXS-D |
| MOQ: | 1000 |
| Payment Terms: | T/T |

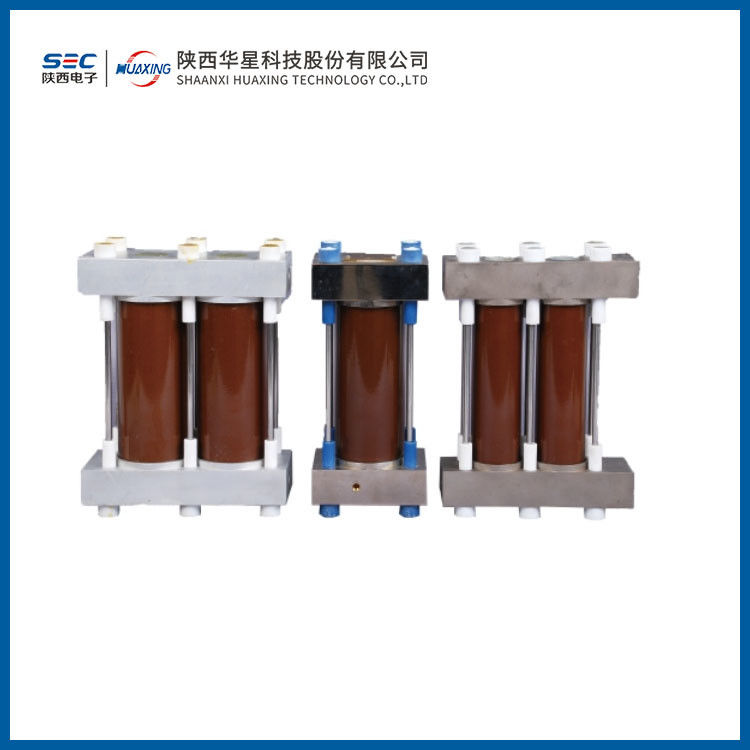

RXS-D High-Power Water Cooled Resistor
Product Introduction:
Size:
| specifications and models | rated power(W) | resistance range(Ω) | Coolant | coolant flow rate(L/min) | working environment |
| RXS-A | 5 | 0.3～3 | Deionized Water+Ethylene Glycol | ≥8 | Temperature Range:(-25～+70)℃,Altitude:≤1000m |
Key Test Items:
| Test items: | Test conditions: | Performance requirements: | Test standards: |
| Air tightness | Pressure: 0.6 MPa, 10 minutes | No water leakage | — |
| Temperature rise of the medium | Ambient temperature: (15-30) °C Coolant, rated power |
Temperature difference between inlet and outlet ≤ 30°C | — |
| Voltage resistance | Voltage: 6 kV AC, 1 minute, between the lead-out terminal and mounting screw | No breakdown, arcing | GB/T 5729-2003 Section 4.7 |
| Vibration | Frequency: (1-50) Hz Amplitude 0.075 mm or acceleration 10 m/s², 6 hours |
No damage to the seal, ΔR ≤ ± (1%R + 0.05Ω) | GB/T 2423.10-1981 |
Ordering Example:
Model Number :RXS-D
Rated Power:5KW
Nominal Resistance:3Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
