| Brand Name: | HUAXING |
| Model Number: | RXK-2000W |
| MOQ: | 1000 |
| Payment Terms: | T/T |

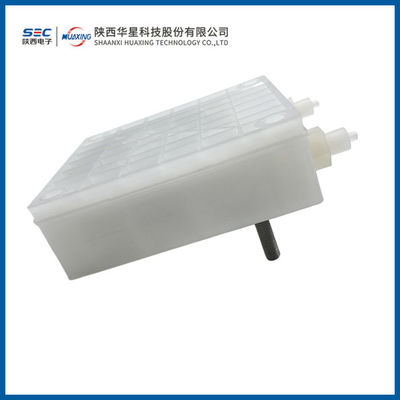

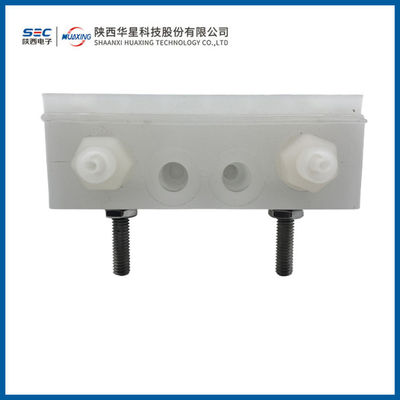

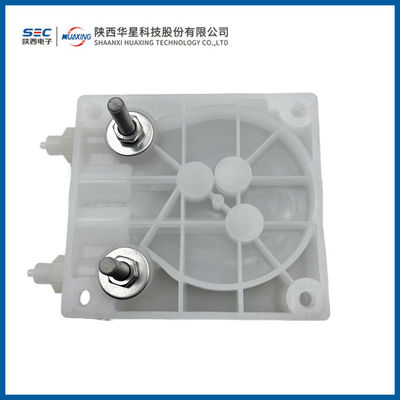

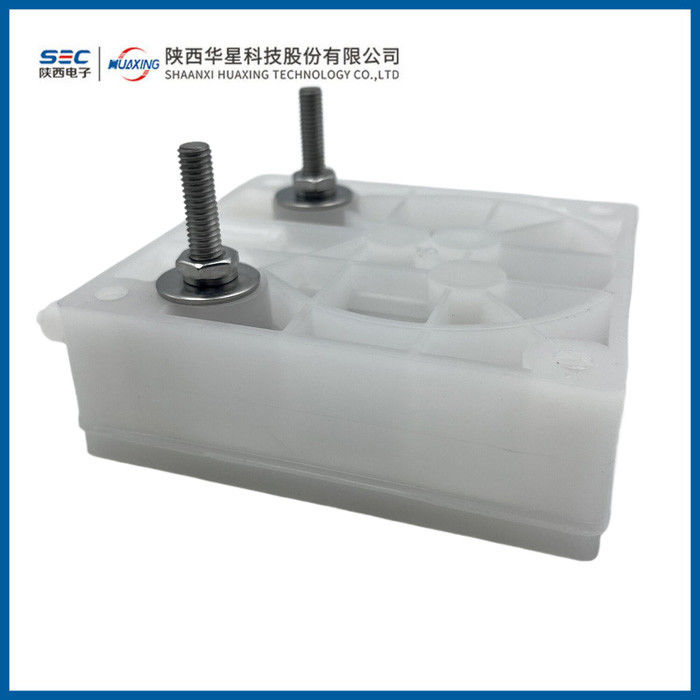

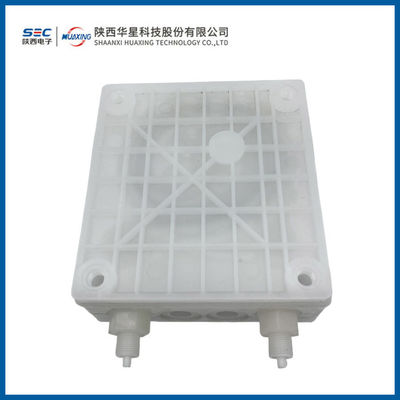

RXK-2000W Water Cooled Resistor
Product Introduction:
Size:
| Specifications Model | Rated Power (W) | Resistance Range (Ω) | Cooling Medium | Medium Flow Rate (L/min) | Operating Environment |
| RSK-2000 | 2000 | 1～10 |
Distilled water+Ethylene glycol
|
≥3 | Temperature range: (0～+60)℃ |
Key Test Items:
| Test items: | Test conditions: | Test requirements: | Test Standards: |
| Air tightness | Pressure: 1.5 MPa, 15 minutes | No water leakage | — |
| Insulation resistance | Voltage: (500±50) Vdc, 1 minute, between lead-out terminal and mounting plate | Insulation resistance ≥100MΩ | GB/T 5729-2003 Section 4.6 |
| Voltage withstand capability | Voltage: 3000 Vac, 1 minute, between lead-out terminal and mounting plate | No breakdown, arcing | GB/T 5729-2003 Section 4.7 |
| Lead-out terminal strength | Torque: 3 N·m, 10 seconds | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 5729-2003 Section 4.16 |
| Vibration | Frequency: (10-55) Hz, Amplitude: 0.75mm, 2 hours | ΔR ≤ ±(5%R + 0.05Ω) | GB/T 2423.10-2008 |
| Room temperature durability | Rated power, 96 hours, water flow rate: 3 L/min, Inlet water temperature: (45±3°C), Cooling water electrical conductivity: ≤5 μs/cm | ΔR ≤ ±(5%R + 0.05Ω) | — |
Note:
Ordering Example:
Model Number :RXK-2000W
Rated Power:2KW
Nominal Resistance:1Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
