| Brand Name: | HUAXING |
| Model Number: | RSH10WA |
| MOQ: | 1000 |
| Payment Terms: | T/T |

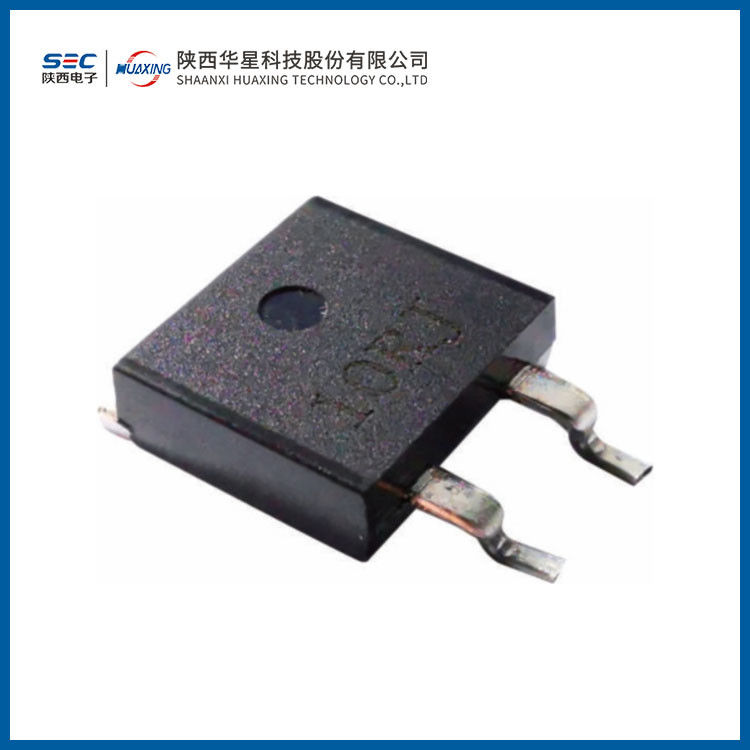

RSH10WA Plastic encased thick film resistor
Product Introduction:
Size:
| specifications and models | rated power(W) | resistance range(Ω) |
| RSH10WA | 10 | 0.1Ω～1MΩ |
Key Test Items:
| Test items: | Test conditions: | Performance parameters: | Test standards: |
| Resistance change with temperature | ±150ppm/°C | GB/T 5729-2003 Clause 4.8 | |
| Overload | 1.5 times the rated power load for 10 seconds | ΔR ≤ ±(0.25%R + 0.05Ω) | GB/T 5732-1985 Clause 2.3.4 |
| Rapid temperature change | Temperature range: (-55 to +155)°C 5 cycles |
ΔR ≤ ±(0.25%R + 0.05Ω) | GB/T 2423.22-2002 |
| Steady-state humidity and heat | Ambient temperature: (15 to 30)°C Rated power 1.5 hours powered on; 0.5 hours powered off, for 1000 hours |
ΔR ≤ ±(1%R + 0.05Ω) | GB/T 5729-2003 Clause 4.25 |
Ordering Example:
Model Number :RSH10WA
Nominal Resistance:0.1Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
