| Brand Name: | HUAXING |
| Model Number: | HRR |
| MOQ: | 1 |
| Payment Terms: | T/T |

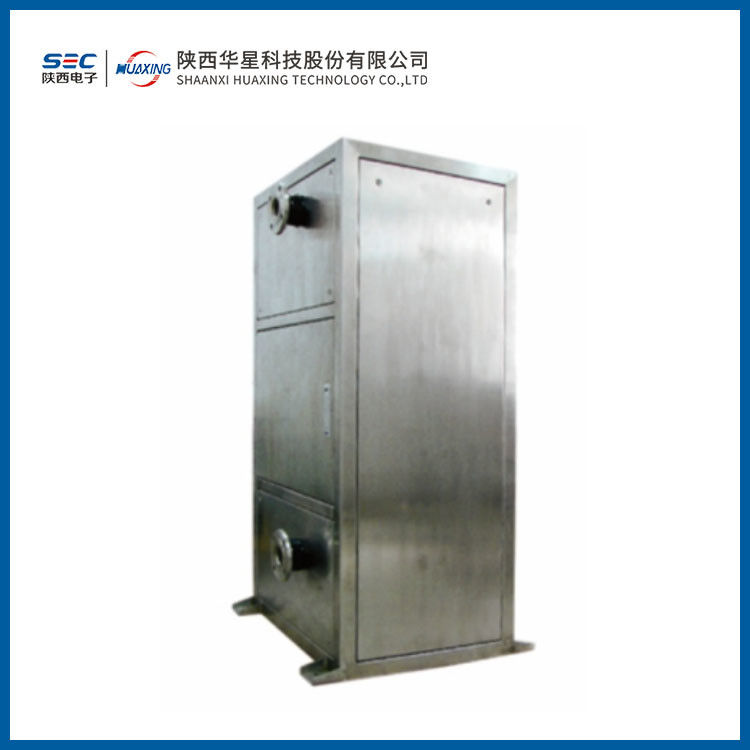

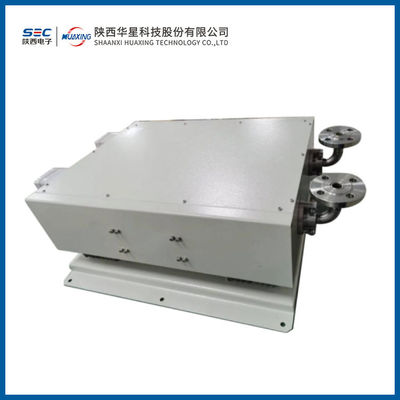

HRR High Power Load Bank Water Cooled Load Cabinet
1,RXS-200KW Water-Cooled Braking Resistor for Dredgers (Beijing Siemens)
Rated Power: 200kW
Resistance Range: 1Ω to 1KΩ
Operating Mode: P20/70
Cooling Method: Tap water or tap water with antifreeze coolant
Flow Rate: 7 to 10m3/h
Pressure: 0.6MPa
2,MNFZ-80KW Analog Load (Water-Cooled Load Cabinet)
Rated Power: 20KW × 4 channels
Rated Resistance: 200Ω × 4 channels, ±5%
Operating Mode: Power on for 100s, off for 700s, continuous cycle
Cooling Method: LD60 cooling
Flow Rate: 30L/min
Pressure: 0.6MPa
Insulation Resistance: 5000Vdc; ≥100MΩ
Passed vibration test
3,HRR-SL-2X4KW-4KR Water-Cooled Load
Rated Power: 4KW × 2 channels
Rated Resistance: 4KΩ × 2 channels, ±5%
Operating Mode: Continuous operation
Cooling Method: Freshwater cooling
Flow Rate: 1.8 to 2m3/h
Pressure: 0.6MPa
Voltage Withstand: 10KVdc, 1 minute; no breakdown or arcing.
|
|
