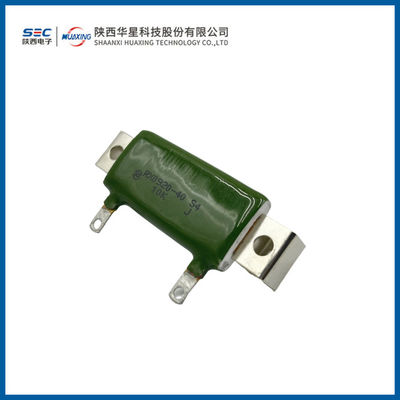

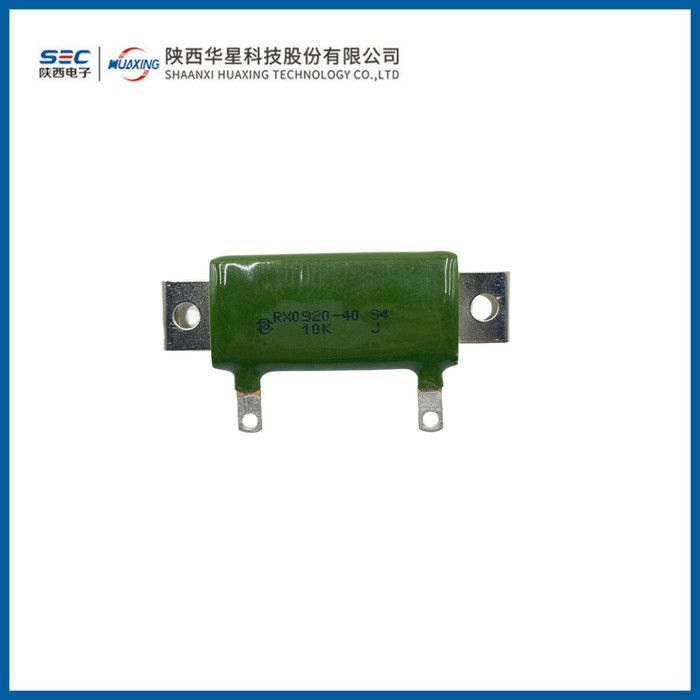

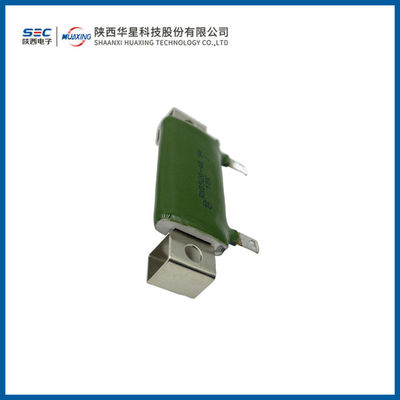

RX0920 Flat-shaped Enamelled wirewound resistor
Product Introduction
■ Product Features: Radial lead-out leads, equipped with mounting brackets for user convenience. Enamel-coated surface, strong pollution resistance, moisture-resistant, chemically inert, and high-temperature resistant.
■ Application Area: Used in direct current or low-frequency alternating current circuits of large-scale.
■ Product Standard: Technical specifications for RX0920 Enamel-coated Flat Wirewound Resistor according to Q/RW186-1985.
■ Capable of producing products compliant with RoHS, REACH requirements.
| specifications and models | rated power(W) | resistance range(Q) |
Size ( m m ) L |
Remark |
| RX0920-20W | 20 | 5.1~1K | 33 | Bracket:a,1 |
| RX0920-55W | 55 | 5.1～5.1K | 90 | Bracket:a,I,Ⅱ,Ⅲ,IV,V |
Key Test Items:
| Test Items | Test Conditions | Performance Requirements | Test Standards |
| Overload | 10 times rated power load for 5s | △R ≤ ±(2%R + 0.1Ω) | GB/T 5732-1985 Section 2.3.4 |
| Temperature Rise | Ambient Temperature: (15 to 35)℃, rated power | ≤275℃ | GB/T 5729-1985 Section 4.14 |
| Solderability | HISnPb39, 75W soldering iron method, tinning method | Evenly tinned, freely flowing | GB/T 2423.28-1982 |
| Vibration | Frequency: (10 to 500)Hz, acceleration: 98m/s², 1h | △R ≤ ±(1%R + 0.05Ω) | GB/T 2423.10-1981 |
| Steady-state Damp Heat | Temperature: (40±2)℃, relative humidity: (93±3)%, 96h | △R ≤ ±(5%R + 0.1Ω) | GB/T 2423.03-1981 |
| Room Temperature Durability | Ambient Temperature: (15 to 35)℃, rated power, 1.5h powered; 0.5h unpowered, 1000h | △R ≤ ±(5%R + 0.1Ω) | GB/T 5729-1985 Section 4.25 |
Power dissipation curve:
Ordering Example:
Model Number :RX0920
Rated Power:20W
Nominal Resistance:10Q
Resistance Tolerance:±5%
Remark:a
Quantity:1000 pieces
|
|
