Vitreous Enamelled Wirewound Resistors
Created with Pixso. RXG20 Enamelled Wirewound Resistor

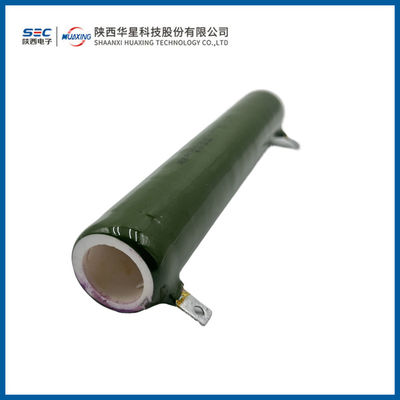

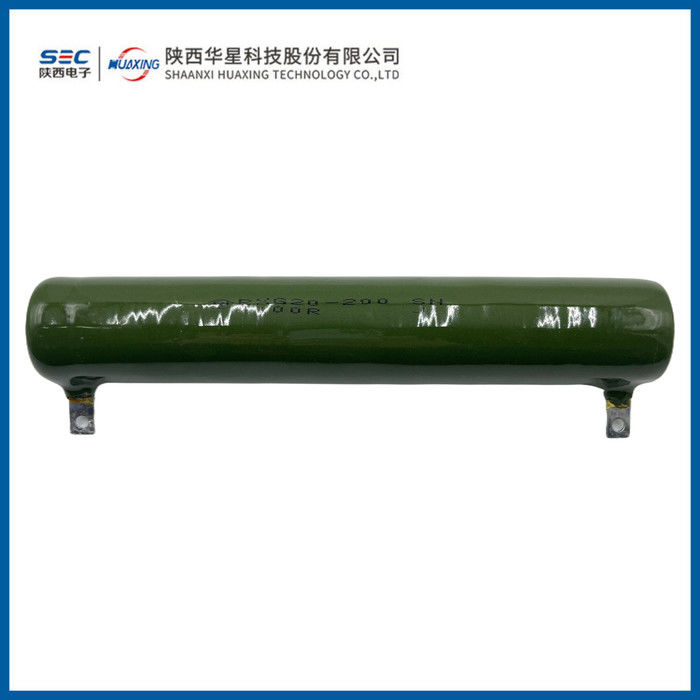

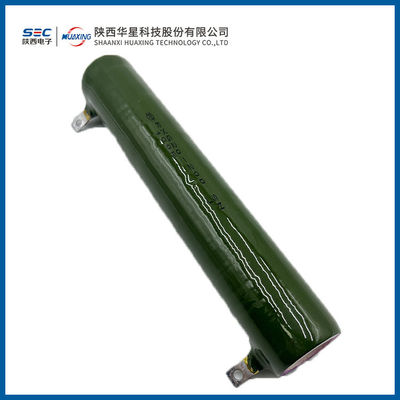

RXG20 Enamelled Wirewound Resistor

Brand Name: HUAXING
Model Number: RXG20
MOQ: 1000
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Highlight:

RXG20 vitreous enamelled wirewound resistors

,

moisture resistant vitreous enamelled wirewound resistors

,

RXG20 enamelled wirewound resistor

Product Description

RXG20 enamelled wirewound resistor


Product Introduction
■ Product Features: Equipped with dedicated accessories (optional), easy to install. Excellent high-temperature load characteristics. Enamel-coated surface, strong pollution resistance, moisture-resistant, chemically inert, and high-temperature resistant.
■ Application Area: Used in direct current or low-frequency alternating current circuits for voltage division, current division, and load purposes.
■ Product Standard: Detailed specifications for RXG20(T) Enamel Power Wirewound Resistor according to Q/RW324-1992.
■ Can provide non-inductive products upon negotiation, indicated by adding "N" to the model number.
■ Capable of producing products compliant with RoHS, REACH, and three-proof requirements.



Size:

RXG20 Enamelled Wirewound Resistor 0



specifications and models rated power(W) resistance rangeΩ) Size ( m m )
L L1 L2 D d H H1 d1 t B B1
RXG20-200W 200 4.7~12K 215±3 247±4 259±4 38±3 30±2 25±1.5 16±0.8 84±3 58±2 50±2 4 9 35 6.5
RXG20-250W 250 4.7~12K 266±3 296±4 308±4 71±2   26 6.5
RXG20-300W 300 4.7~12K 266±3 298±4 310±4 36±2 22±1.2 82±3 58±2 35 6.5
RXG20-400W 400 5.1~12K 250±2 280±3 298±4 54±2 30±2 98±3 79±3 8 16 50 6.5
RXG20-500W 500 5.1~12K 300±2 330±3 348±4 98±3 79±3 50 6.5



Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Insulation Resistance Voltage: (500±50)Vdc, 1min, foil method 1GΩ GB/T 5729-1985 Section 4.6
Dielectric Strength Voltage: 3500Vdc, 1min, between lead-out end and mounting component No breakdown, no arcing GB/T 5729-1985 Section 4.7
Shock Acceleration: 147m/s², Time: 11ms, half-sine wave 18 times △R ≤ ±(2%R + 0.05Ω) GB/T 2423.05-1981
Vibration Frequency: (10-500)Hz, Amplitude 0.75mm or Acceleration 98m/s², 6h △R ≤ ±(2%R + 0.05Ω) GB/T 2423.10-1981
Temperature Rapid Change Temperature Range: (-55+200)℃, 5 cycles △R ≤ ±(2%R + 0.05Ω) GB/T 2423.22-1981
Steady-state Damp Heat Temperature: (40±2)℃, Relative Humidity: (93±3)%, 96h △R ≤ ±(5%R + 0.1Ω) GB/T 2423.03-1981
Room Temperature Durability Ambient Temperature: (15~35)℃, rated power, 1.5h powered; 0.5h unpowered, 96h △R ≤ ±(5%R + 0.1Ω) GB/T 5729-1985 Section 4.25



Power dissipation curve

RXG20 Enamelled Wirewound Resistor 1

Temperature rise curve

RXG20 Enamelled Wirewound Resistor 2

Ordering Example:

Model Number :RXG20

Rated Power:200W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
