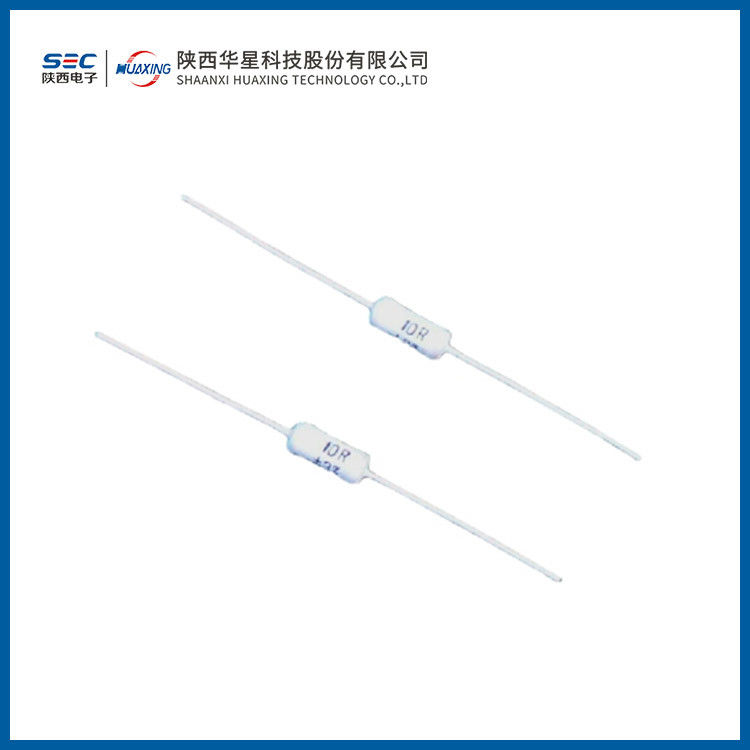

RXF11 Varnished wirewound resistor
Product Introduction:
Size:
| specifications and models | rated power(W) | resistance range(Ω) | Size (mm) | ||
| Lmax | Dmax | d | |||
| RXF11-1/4W | 1/4 | 0.015～8.2 | 7 | 2.5 | 0.6 |
| RXF11-1/2W | 1/2 | 0.015～15 | 9.5 | 4 | 0.6 |
| RXF11-1W | 1 | 0.13～15 | 11.5 | 4.5 | 0.6 |
| RXF11-2W | 2 | 0.02～43 | 15.5 | 5.5 | 0.8 |
| RXF11-3W | 3 | 0.022～43 | 16.5 | 7 | 0.8 |
Key Test Items:
| Test Items: | Test Conditions: | Performance Requirements: | Test Standards: |
| Lead-out terminal strength | Pull force: 10N for 10 seconds | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.29-1999 |
| Solderability | Slot temperature: (235±5) ℃, immersion time: (2±0.5) seconds | Uniformly tinned, free flow | GB/T 2423.28-2005 |
| Impact resistance | Acceleration: 490m/s2, time: 11ms, half-sine wave | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.05-1995 |
| Vibration resistance | Frequency: (10-500) Hz, amplitude 0.75mm or acceleration 98m/s2, 6 hours | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.10-2008 |
| Fuse characteristics | Application of fuse voltage or current | Fuse resistance: R2/R1 > 100Ω | SJ 2865-1988 Section 1.8.1 |
| Unexpected overload test(Flame retardancy) | Power: 5 times, 10 times, 16 times rated power, time: 5 minutes (or until open circuit) | No visible flame or burning phenomena | SJ 3272-1990 Section 4.2.2 |
Ordering Example:
Model Number :RX21
Rated Power:10W
Nominal Resistance:10Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
