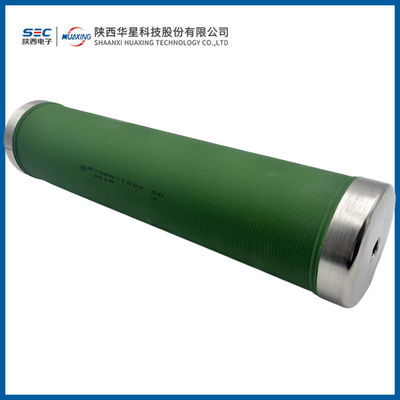

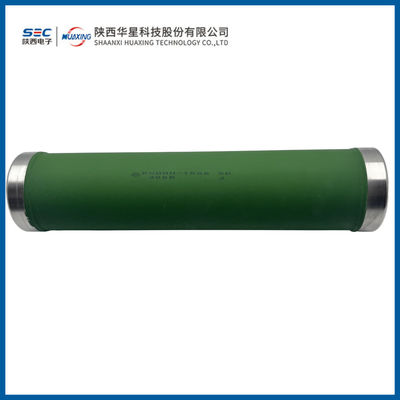

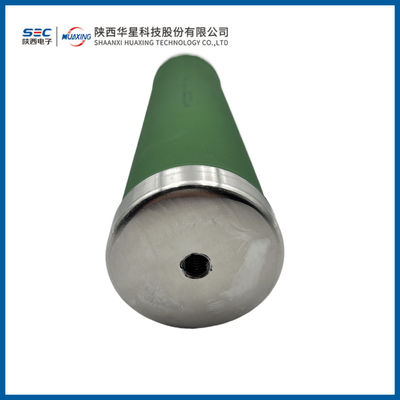

RXQAN Varnished wirewound resistor
Product Introduction:
Size:
| specifications and models | rated power(W) | Impulse power | resistance range(Ω) | Size (mm) | ||
| (W)(2min) | L | D | M | |||
| RXQAN-160 | 150 | 200 | 20～2.4K | 150 | Φ37 | 6 |
| RXQAN-250 | 200 | 300 | 30～3.6K | 150 | φ55 | 8 |
| RXQAN-500 | 300 | 500 | 43～4.7K | 153 | φ73 | default 8 |
| RXQAN-1000 | 600 | 1000 | 82～10K | 308 | (customizable | |
| RXQAN-1500 | 800 | 1500 | 130～10K | 428 | 6,10,12,16) | |
| RXQAN-2000 | 1000 | 2000 | 160～10K | 528 | ||
Key Test Items:
| Test Items: | Test Conditions: | Performance Requirements: | Test Standards: |
| Temperature rise | Ambient temperature: (15-30) ℃, rated power | ≤400℃ | GB/T 5729-2003 Section 4.14 |
| Rapid temperature changes | Temperature range: (-55 to +125) ℃, 5 cycles | ΔR ≤ ±(1%R + 0.1Ω) | GB/T 2423.22-2002 |
| Impact resistance | Acceleration: 150m/s2, time: 11ms, half-sine wave | ΔR ≤ ±(1%R + 0.1Ω) | GB/T 2423.05-1995 |
| Vibration | Frequency: (10-55) Hz Amplitude 0.75mm or acceleration 98m/s2, 1 hour |
ΔR ≤ ±(1%R + 0.1Ω) | GB/T 2423.10-2008 |
| Steady-state damp heat | Temperature: (40±2) ℃, relative humidity: (93±3)%, 96 hours | ΔR ≤ ±(5%R + 0.1Ω) | GB/T 2423.03-1993 |
| Room temperature durability | Ambient temperature: (15-35) ℃, rated power, 1.5 hours powered; 0.5 hours off, 96 hours | ΔR ≤ ±(5%R + 0.1Ω) | GB/T 5729-2003 Section 4.25 |
Power dissipation curve:
Ordering Example:
Model Number :RXQAN
Impulse power:200W
Nominal Resistance:400Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
