| Brand Name: | HUAXING |
| Model Number: | RY |
| MOQ: | 1 |
| Payment Terms: | T/T |

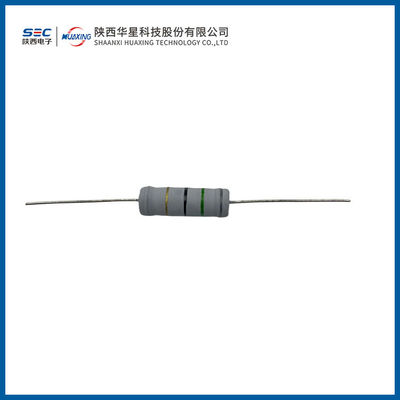

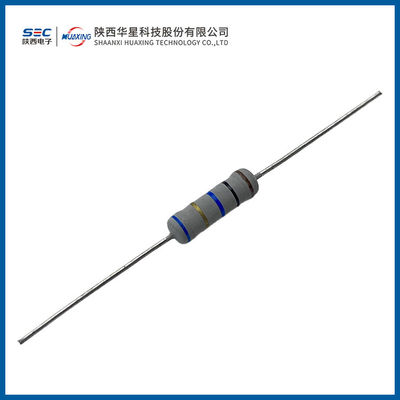

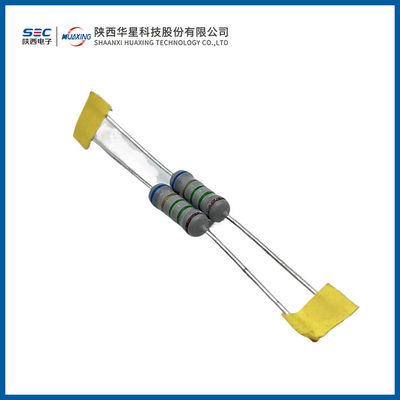

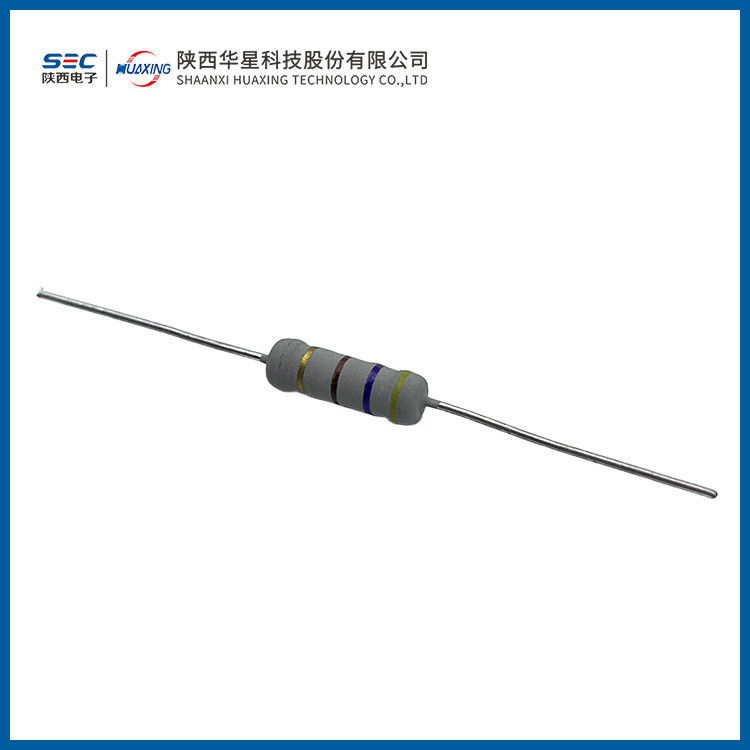

RY type power oxide film resistor
1. Purpose:
strong load capacity, used for load, current limitation and voltage division.
2. Packaging form:
coated with gray insulating paint.
3. Main technical indicators:
| model | power (W) |
Dmax mm |
Lmax mm |
d(mm) | l(mm) |
The length of the paint should not exceed 2mmj
|
| RYG1 | 1/4 | 2.7 | 7 | 0.56±0.05 | 28±2 | |
| 1/2 | 4 | 10 | 0.6±0.05 | |||
| 1 | 5 | 12 | 0.7±0.05 | |||
| 2 | 6 | 16 | 0.7±0.05 | |||
| 3 | 7 | 18 | 0.8±0.05 | 30±3 | ||
| RYG2 | 1/2 | 2.7 | 7 | 0.56±0.05 | 28±2 | |
| 1 | 4 | 10 | 0.7±0.05 | |||
| 2 | 5 | 12 | ||||
| 3 | 6 | 16 | ||||
| 5 | 7 | 18 | 0.8±0.05 | 30±3 | ||
| 7 | 9.5 | 25 | 0.8±0.05 | 30±3 |
4. Main technical indicators:
| model | Rated power (W) at 70℃ |
temperature coefficient ppm/℃ |
Resistance range (Ω) | Resistance tolerance deviation | Component limit voltage (V) | Insulation voltage (V) |
| RYG1 | 1/4 | ±250 | 1-100K |
±1% ±5% |
250 | 350 |
| 1/2 | 300 | 350 | ||||
| 1 | 350 | 500 | ||||
| 2 | 350 | 500 | ||||
| 3 | 500 | 700 | ||||
| RYG2 | 1/2 | ±350 | 1-100K |
±1% ±5% |
250 | 350 |
| 1 | 350 | 500 | ||||
| 2 | 350 | 500 | ||||
| 3 | 350 | 500 | ||||
| 5 | 500 | 700 | ||||
| 7 | 700 | 750 |
|
|
