| Brand Name: | HUAXING |
| Model Number: | RY0990 |
| MOQ: | 1 |
| Payment Terms: | T/T |

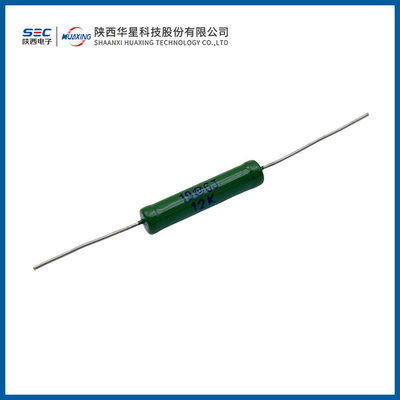

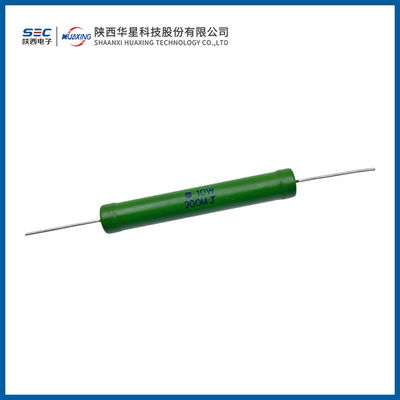

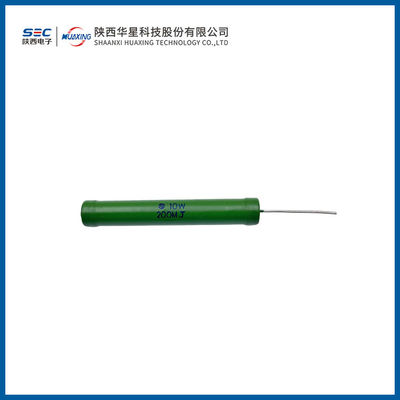

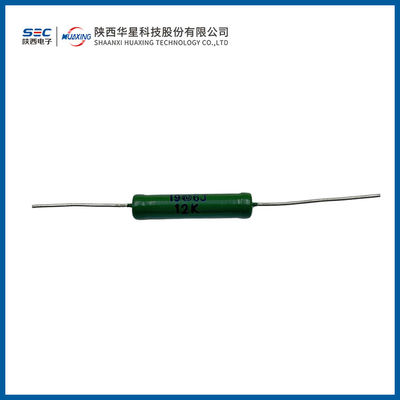

RY0990 type pulse oxidation film fixed resistor
1. Purpose:
used for high voltage pulse electronic equipment and other pulse electronic circuits.
2. Packaging form:
green insulating paint coating
3. External size:
Note ①: The resistance and allowable deviation are directly marked on the main body of the product.
|
70℃ rated power consumption (W) |
outline dimension mm |
maximum weight (g) |
|||
| Lmax | Dmax | l | d | ||
| 1 | 25 | φ6.6 | 30±2 | 0.8±0.05 | 1.5 |
| 2 | 30 | φ8.0 | 2.4 | ||
4. Main technical indicators:
|
power rating (W) |
Resistance range (kΩ) |
Resistance accuracy (±%) |
Component limit voltage (V) |
Pulse limit voltage (k V) |
surge |
resistance-temperature characteristic ×10-6/℃ |
| 1 | 2-3.9 | 5 | 500 | 15 |
Voltage 8kV Capacitor 0.08µF |
200 |
| 2 | 12-24 | 5 | 700 |
|
|
