| Brand Name: | HUAXING |
| Model Number: | RIF82 |
| MOQ: | 1 |
| Payment Terms: | T/T |

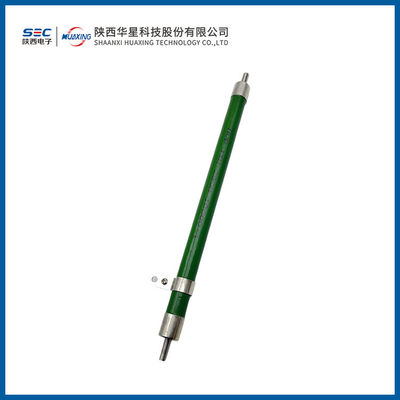

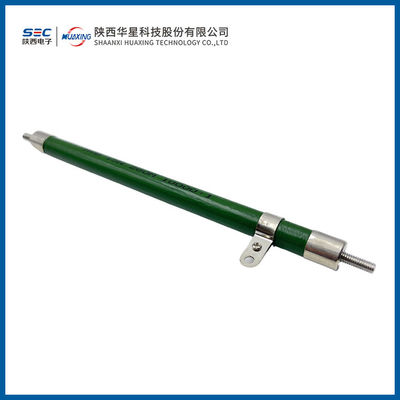

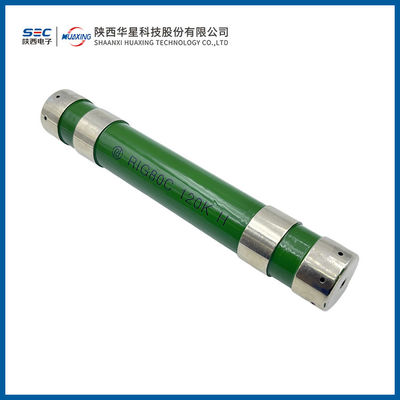

RIF82 type pulse high voltage divider
1. Purpose and characteristics:
the accuracy of voltage division is good, and the high working voltage and high working frequency are characterized
2. Packaging form: no insulation coating.
3. External size:
| nominal candle-power (Ω) | outline dimension (mm) |
Maximum mass (g) |
||
| High voltage arm | Low voltage arm | Lmax | Φ max | |
| 50 | 0.2 | 400 | 220 | 6500 |
| 3k | 11 | 400 | 220 | 6500 |
4. Main technical indicators:
| Rated power (W) at 60℃ | nominal candle-power (Ω) | Nominal resistance allowable deviation (%) |
resistance-temperature characteristic (10-6/℃) |
Pulsed operating voltage (Kv) |
Resistance tolerance r (%) |
degree of linearity (%) | ||
| High voltage arm | Low voltage arm | High pressure arm | Low voltage arm | |||||
| 1500 | 100 | 50 | 0.2 | ±5 | ±500 | 300 | ±5 | ±3 |
| 1500 | 100 | 3k | 11 | ±5 | ±500 | 300 | ±5 | ±3 |
| Rated power refers to the power in 25# transformer oil at 60℃ pulse waveform: 3kΩ:11Ω waveform is a positive 1/4 sine wave with a base width of 2.7μs~3μs; 50Ω;0.2Ω is a negative square wave with a half-wave width of 100ns~120ns | ||||||||
|
|
