| Brand Name: | HUAXING |
| Model Number: | RIF81 |
| MOQ: | 1 |
| Payment Terms: | T/T |

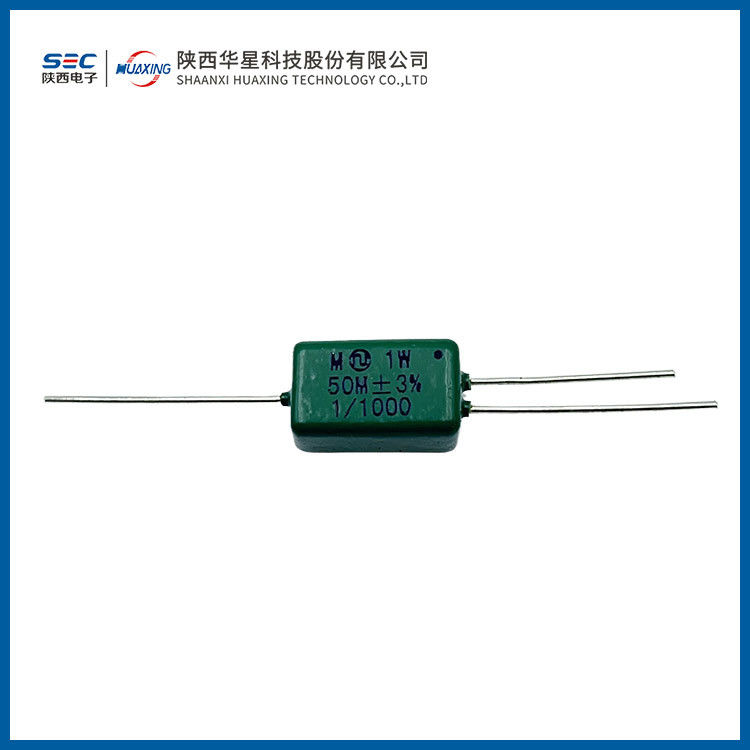

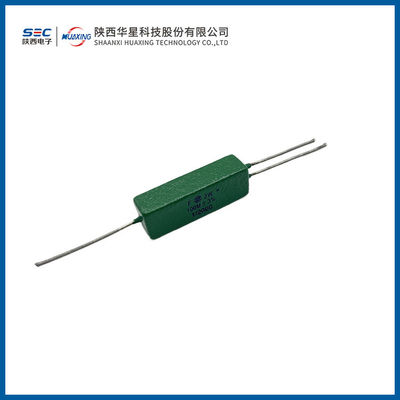

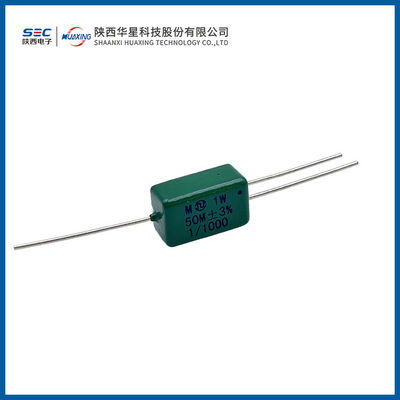

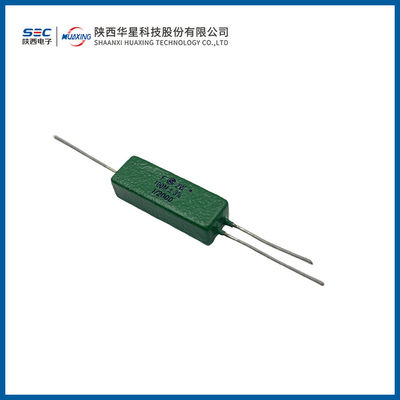

RIF81 high pressure high stability divider
1. Purpose and characteristics:
the accuracy of voltage division is good, and the high working voltage and high working frequency characteristics
2. Packaging form:
no insulation coating.
3. External size:
|
nominal power (W) |
Shape size (mm) | ||
| L | W | H | |
| 1 | 18± 2 | 8±2 | 11±2 |
| 2 | 33± 2 | ||
4. Main technical indicators:
|
nominal power (W) |
nominal candle-power (MΩ) |
working voltage (kv) |
voltage ratio | Pressure division accuracy | Resistance tolerance deviation |
| 1 | 50 | 4 | 1000:1 | ±2% | ±3% |
| 2 | 100 | 8 |
1000:1 2000:1 |
|
|
