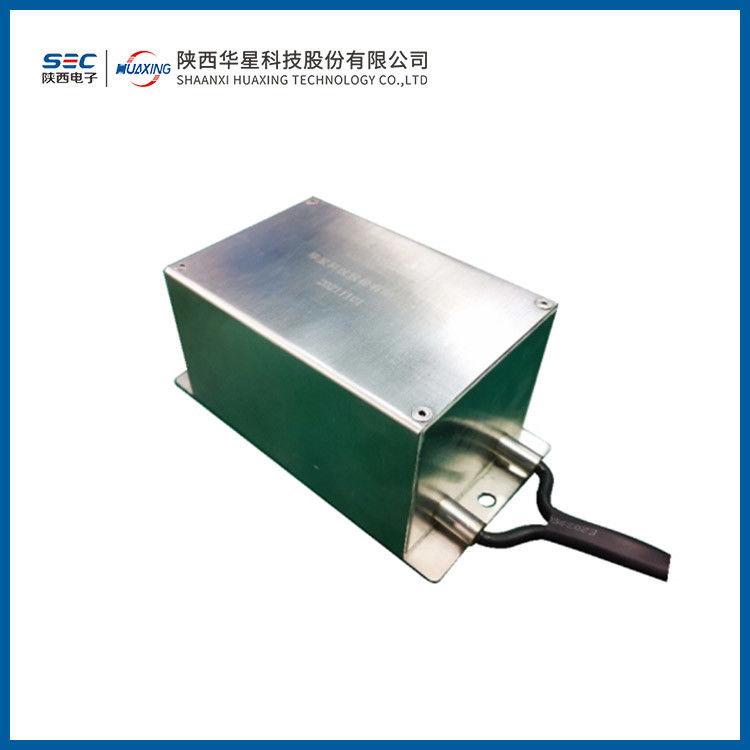

RXL-D Series Braking Power Resistor
Product Introduction:
Size:
| specifications and models | Peak Power(W) | resistance range(Q) |
| RXL-D3 | 92K | 5.6 |
Key Test Items:
| Test Items | Test Conditions | Performance Requirements | Test Standards |
| Maximum Braking Energy Absorption | 92KWs | No open circuit | — |
| Pulse Energy Cycling | 92KW, 1 second on, 30 minutes off, 100 cycles | No open circuit | — |
| Insulation Resistance | Voltage: (500±50) Vdc, 1 minute between output terminal and casing | Resistance >50MΩ | GB/T 5729-2003 Section 4.6 |
| Voltage Endurance | Voltage: 2000Vac, 1 minute, between output terminal and bracket | No breakdown, no arcing | GB/T 5729-2003 Section 4.7 |
| Vibration | Frequency: (10-55) Hz, Amplitude: 0.2mm or Acceleration: 1.3g, 6 hours | ΔR ≤ ±(1.0%R + 0.05Ω) | GB/T 2423.10-2019 |
Note:
1,This resistor has high braking energy and short braking time, allowing for natural heat dissipation. When initially installing and using it, please read this specification and consult technical personnel to avoid operating outside the specified parameters. Pay special attention to the following points:
2,Installation: Secure the resistor to the mounting surface using the 4 mounting holes.
3,Due to the high operating current of this resistor as per the specification, ensure reliable electrical connections at the cable terminals to reduce contact resistance.
Ordering Example:
Model Number :RXL-D3
Nominal Resistance:5.6Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
