| Brand Name: | HUAXING |
| Model Number: | RXL-A 30W |
| MOQ: | 1000 |
| Payment Terms: | T/T |

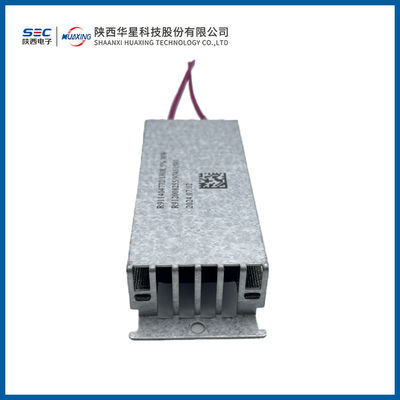

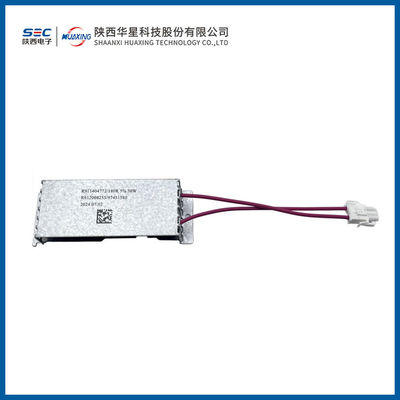

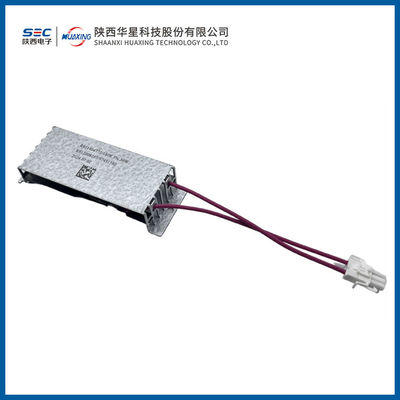

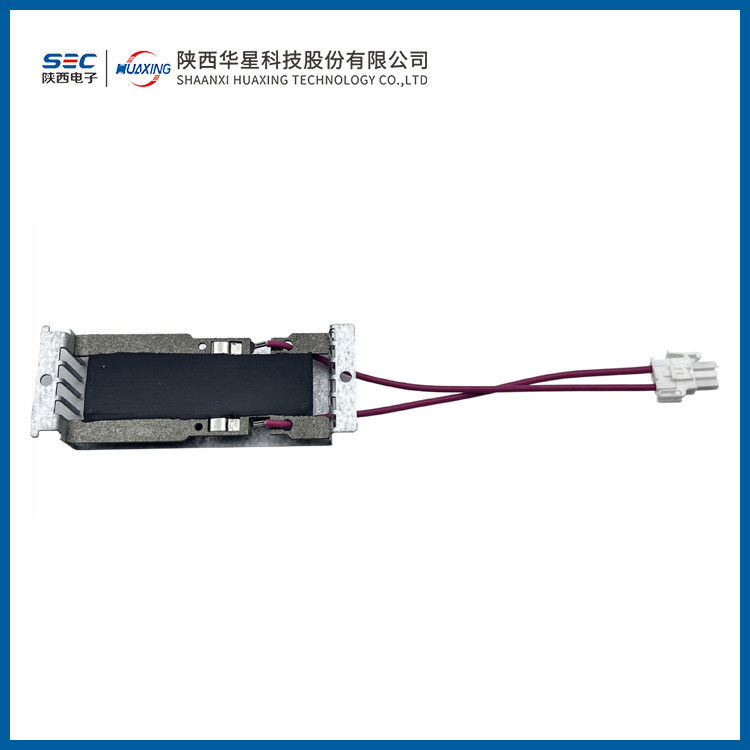

RXL-A 30W Braking Power Resistor
Product Introduction:
Size:
| specifications and models | rated power(W) | resistance range(Q) |
| RXL-A-30W | 30 | 1～300 |
Key Test Items:
| Test Items: | Test Conditions: | Performance Requirements: | Test Standards: |
| Insulation resistance | Voltage: (500±50) Vdc, 1 minute, between output terminal and bracket | Insulation Resistance: ≥50MΩ | GB/T 5729-2003 Section 4.6 |
| Voltage endurance | Voltage: 2500Vac, 1 minute, between output terminal and bracket | No breakdown, no arcing | GB/T 5729-2003 Section 4.7 |
| Vibration | Frequency: (10-55) Hz, Amplitude: 0.2mm or Acceleration: 1.3g, 6 hours | ΔR ≤ ±(1.0%R + 0.05Ω) | GB/T 2423.10-2019 |
| Temperature rise | Ambient temperature: (15-30) ℃, rated power | Temperature rise: ≤450℃ | GB/T 5729-2003 Section 4.14 |
Note:
1,This resistor has high braking energy and short braking time, allowing for natural heat dissipation. When initially installing and using it, please read this specification and consult technical personnel to avoid operating outside the specified parameters. Pay special attention to the following points:
2,Installation: Secure the resistor to the mounting surface using the 4 mounting holes.
3,Due to the high operating current of this resistor as per the specification, ensure reliable electrical connections at the cable terminals to reduce contact resistance.
Ordering Example:
Model Number :RXL-A 30W
Rated Power:30W
Nominal Resistance:30Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
