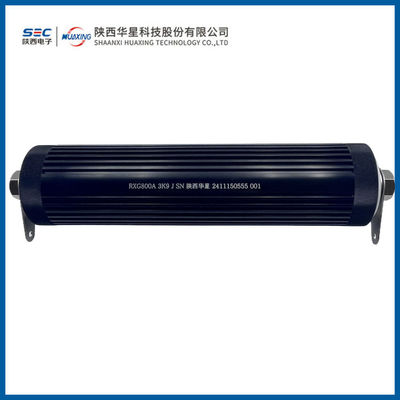

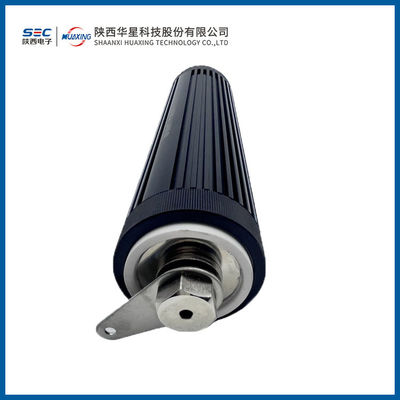

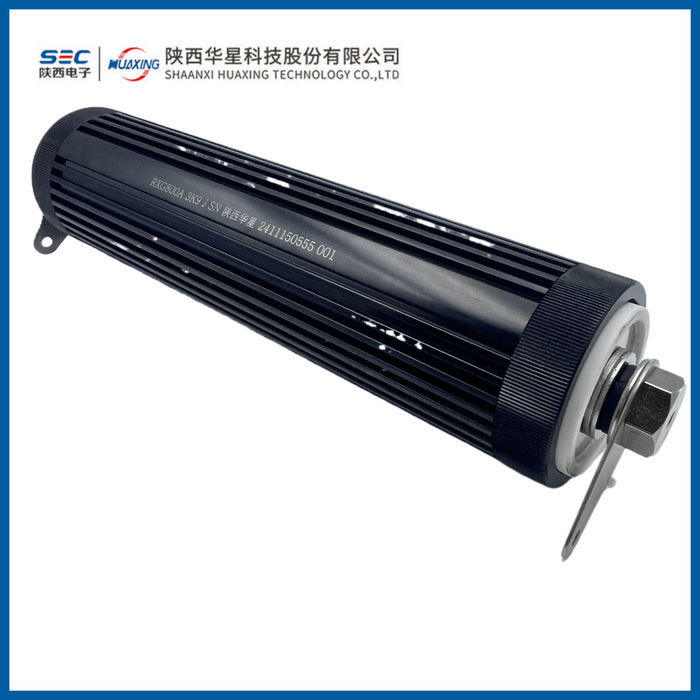

RXG High power Aluminum-housed wirewound resistor

Product Introduction:

Product features: Aluminum housing with heat dissipation teeth, excellent heat dissipation. Integrated packaging using flame retardant materials.
Application areas: Used for voltage division or current splitting in DC or low-frequency AC circuits in electrical and large power equipment. High-power absorption resistor used in RC absorption circuits on electric locomotives.
Product standard: Detailed specifications for high-power aluminum housing wire-wound fixed resistors in the RXG series, conforming to standard Q/RW 448A-2011.Negotiable to provide sensorless products, denoted by adding "N" before the model number.
Capable of producing products that comply with RoHS and REACH requirements.

Size:
RXG High Power Aluminum Housed Wirewound Resistor 0

specifications and models	rated power(W) (25℃)	Impulse power (W)	resistance range(Ω)	Size(mm)
specifications and models	rated power(W) (25℃)	Impulse power (W)	resistance range(Ω)	L1	L2	L3	L4	D	H	H1	d
RXG300D-I/II	200	300	5.1Ω～3KΩ	197	180	**	71	51	73	58	5
RXG400A-I/II	300	400	5.1Ω～3KΩ	196	179	**	75	66	80.5	75	5
RXG600D-I/II	400	600	5.1Ω～4.7KΩ	293	276	129	71	51	73	58	5
RXG800A-I/II	600	800	5.1Ω～7.5KΩ	301	284	129	75	66	80.5	75	5
RXG800B-I/II	600	800	6.8Ω～10KΩ	268	145	**	**	85	127.5	**	**
RXG800C-I/II	600	800	5.1Ω～6.8KΩ	285	268	127	75	66	80.5	75	5
RXG1000B-I/II	800	1000	10Ω～12KΩ	308	185	**	**	85	127.5	**	**

**Indicates that the resistor clamp ring is one and located on the center line of the resistor.

Key Test Items:

Test Items	Test Conditions	Performance Requirements:	Test Standards
Insulation resistance	Voltage: (500±50) Vdc, 1 minute,Between lead wires and aluminum housing	Insulation resistance: ≥1GΩ	GB/T 5729-2003 Section 4.6
Voltage withstand capability	Voltage: 4000 Vac (RXG800B/1000B: 6000 Vac),Leakage current: 20mA, 1 minute,Between lead wires and aluminum housing,	No breakdown, no arcing	GB/T 5729-2003 Section 4.7
Vibration resistance	Frequency: (10 to 500) Hz,Acceleration: 10g, 3 hours	ΔR ≤ ±(2%R + 0.1Ω)	GB/T 2423.10-2008
Steady-state humidity and heat	Temperature: (40±2) ℃,Relative humidity: 93+2 -3%RH,96 h	ΔR ≤ ±(5%R + 0.1Ω)	GB/T 2423.03-1993
Room temperature test Durability test	Ambient temperature: (15 to 30) ℃, rated power,1.5 hours on; 0.5 hours off, for 1000 hours	ΔR ≤ ±(10%R + 0.1Ω)	GB/T 5729-2003 Section 4.25

Notes:

In this series of products, "Ⅰ" indicates that the aluminum housing heat dissipation groove is vertical, while "Ⅱ" indicates that the aluminum housing heat dissipation groove is horizontal.
According to user requirements, the resistance value can be extended to both ends to produce lower or higher resistance value products.
During usage, some volatile materials in the encapsulation may undergo a so-called "venting" process, leading to the generation of certain odors, which is a normal phenomenon. Users should consider this when selecting the product.
Except for the RXG800B/1000B series, it should be specified whether the product comes with mounting brackets for all other series. "Y" indicates with brackets; "N" indicates without brackets.

Power dissipation curve:

Ordering Example:

Model Number :RXG800A-Ⅰ

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
