| Brand Name: | HUAXING |
| Model Number: | RXG24-500C |
| MOQ: | 1000 |
| Payment Terms: | T/T |

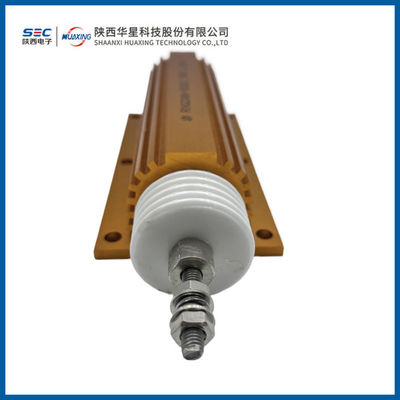

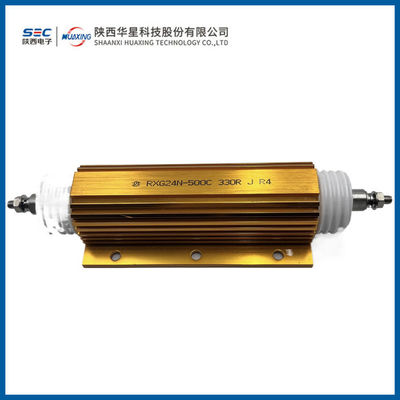

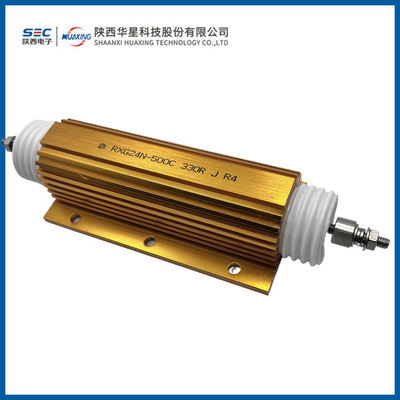

Product Introduction:
Size: 【Two mounting spacing and two lead lengths are available】
| specifications and models |
Rated Power (W) (at 25°C With cold plate ) |
Rated Power (W) (at 25°C Without cold plate ) |
resistance range(Ω) | Cooling medium | Flow rate of the medium(L/min) |
| RXG24-500C | 500 | 100 | 1～30K | Water or other cooling liquids | 0.75 |
Key Test Items:
| Test Items | Test Conditions | Performance Requirements | Test Standards |
| Voltage withstand capability | Voltage: 10KVdc,1min, between lead terminals and mounting board | No breakdown, no arcing | GB/T 5729-2003 Section 4.7 |
| Lead terminal strength | Pull force: 40N, 10 seconds | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.28-2005 |
| Impact resistance | Acceleration: 500m/s2, time: 11ms, half sine wave | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.05-1995 |
| Vibration resistance | Frequency: (10 to 500) Hz, acceleration: 0.75mm or 100m/s2, 6 hours | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.10-2008 |
| Steady-state humidity and heat | Temperature: (40±2) ℃, relative humidity: (93±3) %RH, 96 hours | ΔR ≤ ±(5%R + 0.1Ω) | GB/T 2423.03-1993 |
| Room temperature endurance | Product mounted horizontally on recommended standard aluminum heat sink board, ambient temperature: (15 to 30) ℃, rated power, 1.5 hours on; 0.5 hours off, for 1000 hours | ΔR ≤ ±(5%R + 0.1Ω) | GB/T 5729-2003 Section 4.25 |
Power dissipation curve:
Temperature rise curve:
Ordering Example:
Model Number :RXG24-500C
Rated Power:500W high temperature resistance
Nominal Resistance:10Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
