| Brand Name: | HUAXING |
| Model Number: | RXG24 |
| MOQ: | 1000 |
| Payment Terms: | T/T |

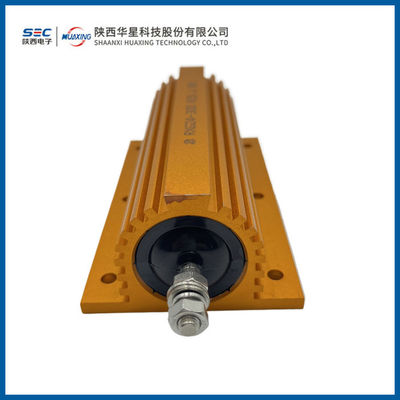

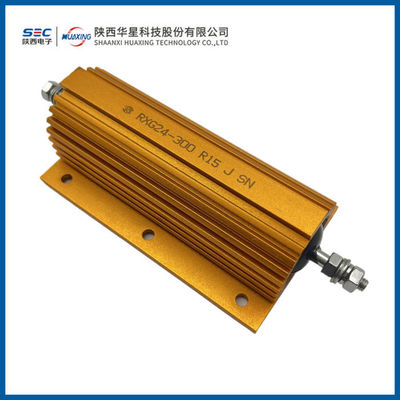

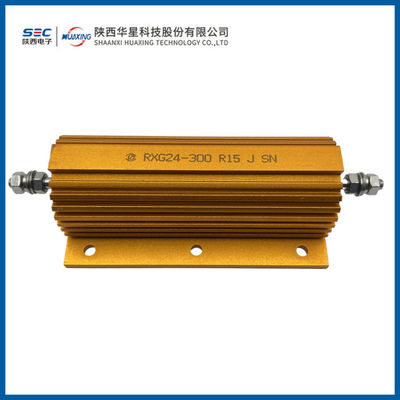

Product Introduction:
Size:
| specifications and models |
Rated Power (W) (at 25°C with heat sink) |
Power (W) (at 25°C without heat sink) |
resistance range(Ω) | Size (mm) | Recommended Standard Aluminum Heat Sink Plate(cm2)Thickness 3㎜ | ||||||||
| A±0.5 | K±1 | L±3 | B±0.5 | C±0.5 | D | d±0.3 | H±0.5 | ||||||
|
Single-sided Two holes
|
Single-sided Three holes
|
||||||||||||
| RXG24-100W | 100 | 50 | 1.0～20k | 35 | 47 | 65.5 | 101 | 48 | 37 | M4 | 4.4 | 26 | 1000 |
| RXG24-150W | 150 | 55 | 1.0～24k | 58 | 70 | 98 | 133 | 48 | 37 | M4 | 4.4 | 26 | 1000 |
| RXG24-200W | 200 | 50 | 1.0～18k | - | 70 | 90 | 148 | 73 | 57.5 | M6 | 5.5 | 45 | 3755 |
| RXG24-300W | 300 | 75 | 1.0～30k | - | 104 | 128 | 181 | 73 | 57.5 | M6 | 5.5 | 45 | 5795 |
Key Test Items:
| Test Items | Test Conditions | Performance Requirements | Test Standards |
| Voltage withstand capability | Voltage: 500Vac, 1 minute, between lead terminals and mounting board | No breakdown, no arcing | GB/T 5729-2003 Section 4.7 |
| Temperature rise | Ambient temperature: (15 to 30) ℃, rated power | ≤250°C | GB/T 5729-2003 Section 4.14 |
| Lead terminal strength | Pull force: 40N, 10 seconds | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.28-2005 |
| Impact resistance | Acceleration: 500m/s2, time: 11ms, half sine wave | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.05-1995 |
| Vibration resistance | Frequency: (10 to 500) Hz, acceleration: 0.75mm or 100m/s2, 6 hours | ΔR ≤ ±(1%R + 0.05Ω) | GB/T 2423.10-2008 |
| Steady-state humidity and heat | Temperature: (40±2) ℃, relative humidity: (93±3) %RH, 96 hours | ΔR ≤ ±(5%R + 0.1Ω) | GB/T 2423.03-1993 |
| Room temperature endurance | Product mounted horizontally on recommended standard aluminum heat sink board, ambient temperature: (15 to 30) ℃, rated power, 1.5 hours on; 0.5 hours off, for 1000 hours | ΔR ≤ ±(5%R + 0.1Ω) | GB/T 5729-2003 Section 4.25 |
Power dissipation curve:
Temperature rise curve:
Ordering Example:
Model Number :RXG24
Rated Power:150W
Nominal Resistance:10Ω
Resistance Tolerance:±5%
Quantity:1000 pieces
|
|
