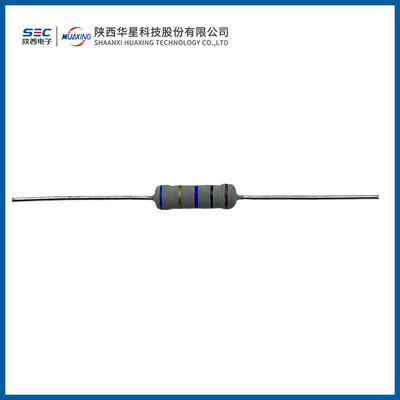

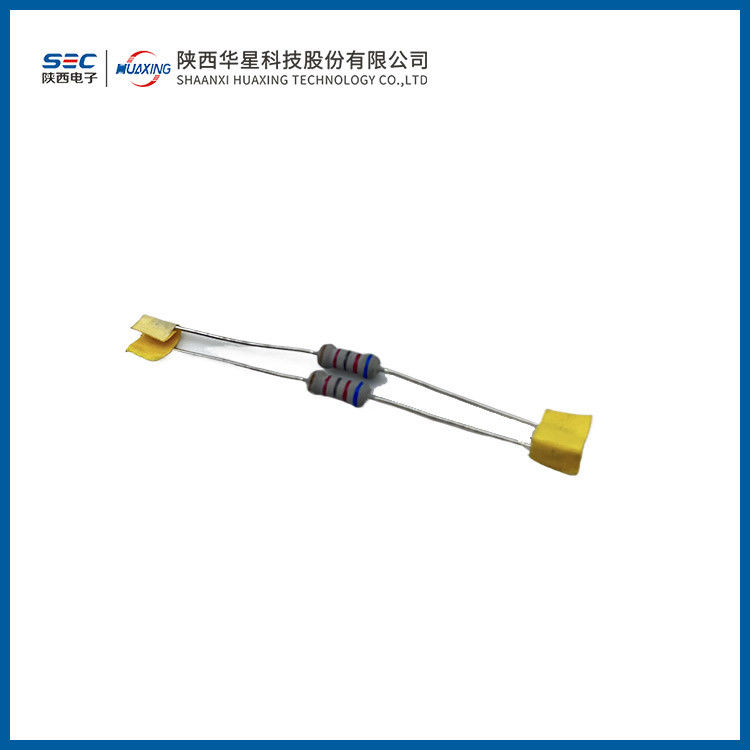

RI42 type glass enamel resistor
1. Purpose:
good temperature characteristics, high pressure resistance, good pulse resistance, used in DC, AC and pulse circuits.
2. Coating:
coated with gray insulating paint.
3. External size:
| power (W) |
ΦDmax (mm) |
Lmax(mm) | Φd(mm) | l(mm) |
| 0.5 | 2.7 | 7.0 | 0.5±0.1 | 28±3 |
| 1 | 4.0 | 10.0 | 0.56±0.1 | 28±3 |
| 2 | 5.5 | 13.0 | 0.7±0.1 | 28±3 |
| 3 | 6.5 | 16.0 | 0.7±0.1 | 28±3 |
| 5 | 7.5 | 18.5 | 0.7±0.1 | 35±3 |
| 7 | 9.5 | 26.0 | 0.7±0.1 | 35±3 |
4. Main technical indicators:
| Rated power (W) at 70℃ |
temperature coefficient ppm/℃ |
Resistance range (Ω) | Resistance tolerance deviation | Component limit voltage (V) | Insulation voltage (V) |
| 1/2 | ±300 | 1K-33M |
±1% ±2% ±5% |
350 | 500 |
| 1 | 1K-56M | 500 | 750 | ||
| 2 | 1K-56M | 700 | 750 | ||
| 3 | 1K-100M | 700 | 1000 | ||
| 5 | 1K-100M | 1000 | 1000 | ||
| 7 | 1K-100M | 1000 | 1000 |
|
|
