| Brand Name: | HUAXING |
| Model Number: | RI80B |
| MOQ: | 1 |
| Payment Terms: | T/T |

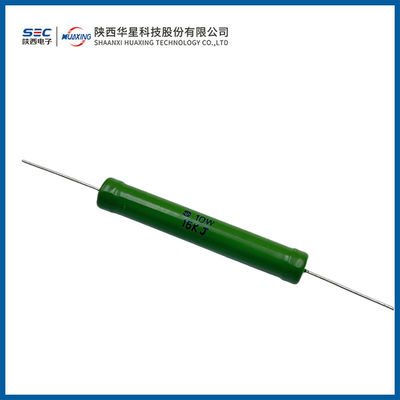

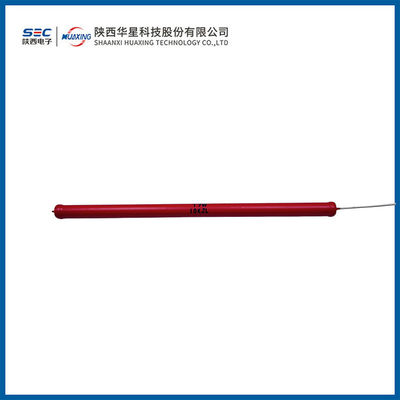

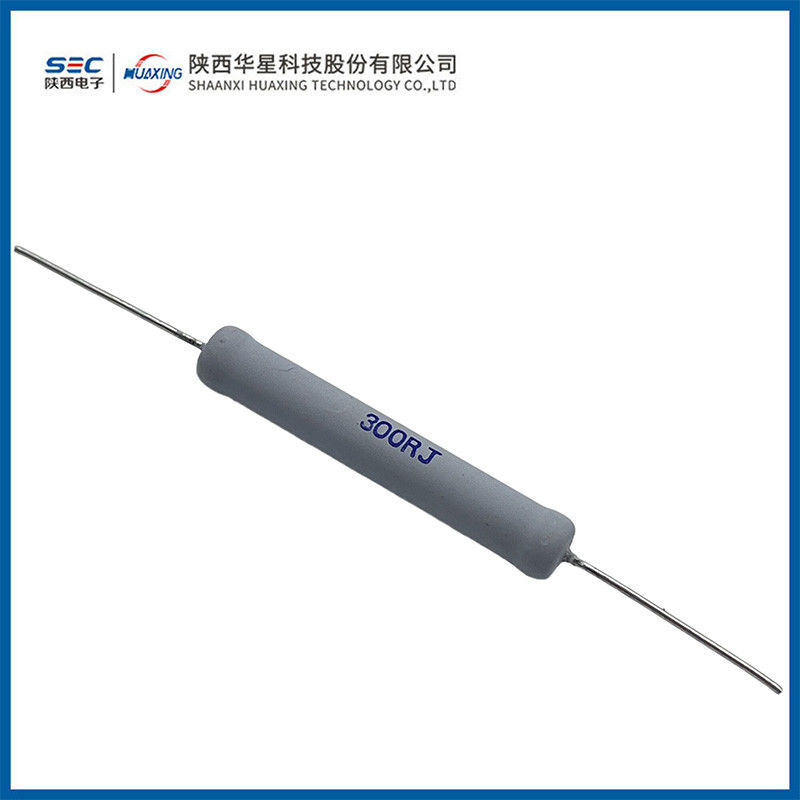

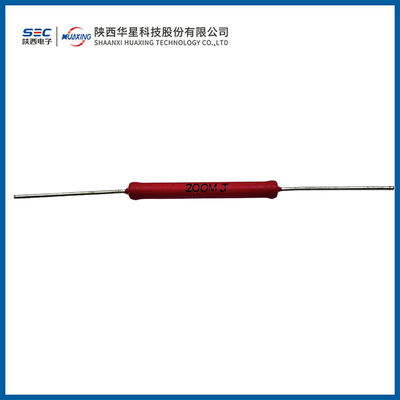

RI80B high voltage glass enamel resistor
1. Purpose:
used for signal measurement and sampling in high voltage lines.
2. External size:
|
power (W) |
temperature coefficient |
Resistance range (Ω) |
Resistance tolerance |
limit voltage AC, DC |
Dmax (mm) |
Lax (mm) |
dmax (mm) |
| 5 |
±350 ppm/℃ |
1M—200M |
±5% ±10% |
15KV | Ø 12 | 45 | Ø 1.1 |
| 10 | 1M—500M | 30KV | 75 | Ø 1.1 | |||
| 20 | 1M—750M | 40KV | 105 | Ø 1.1 | |||
| 25 | 1M—1G | 50KV | 130 | Ø 1.1 | |||
| 30 | 1M—1G | 60KV | 147 | Ø 1.1 |
|
|
