| Brand Name: | HUAXING |
| Model Number: | RI82 |
| MOQ: | 1 |
| Payment Terms: | T/T |

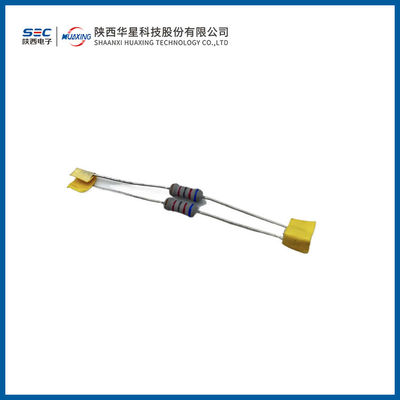

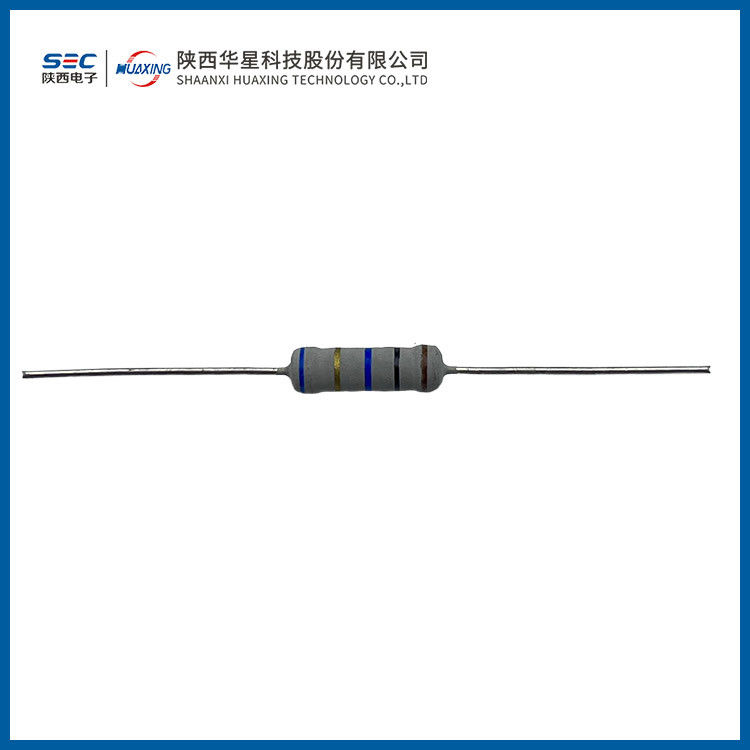

RI82 high voltage glass enamel resistor
1. Purpose:
good temperature stability, strong power load, high reliability; used for miniaturized high voltage electronic circuits.
2. Packaging form:
gray and blue insulating paint coating.
3. External size:
|
specified power dissipation W |
maximum dimensions |
Ø d±0.05 mm |
|
|
D mm |
L mm |
||
| 0.25 | 2.5 | 7.0 | 0.5 |
| 0.5 | 4.0 | 10.0 | 0.6 |
| 1.0 | 5.5 | 14.0 | 0. 7 |
4. Main technical indicators:
|
70℃ down rated dissipation W |
temperature coefficient T.C.R 10-6/℃ |
Resistance range Ω |
Resistance tolerance deviation
|
limit voltage (d.c.or.a.c.rms)DC/AC V |
Maximum overload voltage V |
Insulation voltage (d.c.or.a.c.peak)V |
| 0.25 | ±300 | 1M-33M | ±5% |
DC1600 RMS1150 |
DC2000 | 500 |
| 0.5 |
DC3500 RMS2500 |
DC5000 | 700 | |||
| 1.0 | 100k-56M |
DC7000 RMS5000 |
DC7000 | 700 |
|
|
