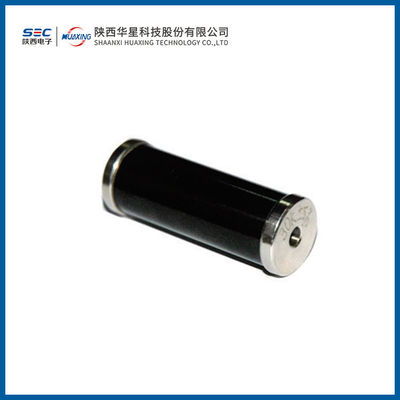

RI0987 type high pressure glass enamel fixed resistor
1. Purpose and characteristics:
As a basic element for absorbing load, dividing voltage or dividing voltage in high voltage and high power electronics and power lines. It has the characteristics of using extreme working voltage, high medium voltage withstand, large single pulse power and small size.
2. Packaging form:
no insulation coating
3. External size:
| Rated single pulse power at 40℃ | nominal candle-power | Shape size (mm) |
maximum weight (g) |
|||
| Lmax | Фmax | A | B | |||
| 450kW | 30kΩ~50kΩ | 55 | 30 | 4±1 | 4±1 | 70 |
4. Main technical indicators:
|
40℃ rated Single pulse power (kw) |
Nominal resistance (kΩ) |
nominal candle-power allowable deviation (%) |
impulse working voltage (kv) |
resistance temperature characteristic (10-6/℃) |
Medium withstand voltage (kv) |
| 450 | 30~50 | ± 5 | 130 | ±500 | 150 |
|
Note: The resistance is 40℃, and the working medium is transformer oil. The voltage applied to both ends of the resistance is the width of the bottom wave The pulse is 3μs~4μs, the front edge is ≤0.8μs, the rear edge is ≤1μs, the top drop is ≤8%, and the interval is 5 minutes Charge voltage |
|||||
|
|
