| Brand Name: | HUAXING |
| Model Number: | RY0992 |
| MOQ: | 1 |
| Payment Terms: | T/T |

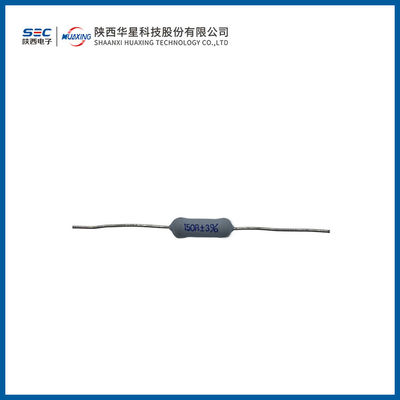

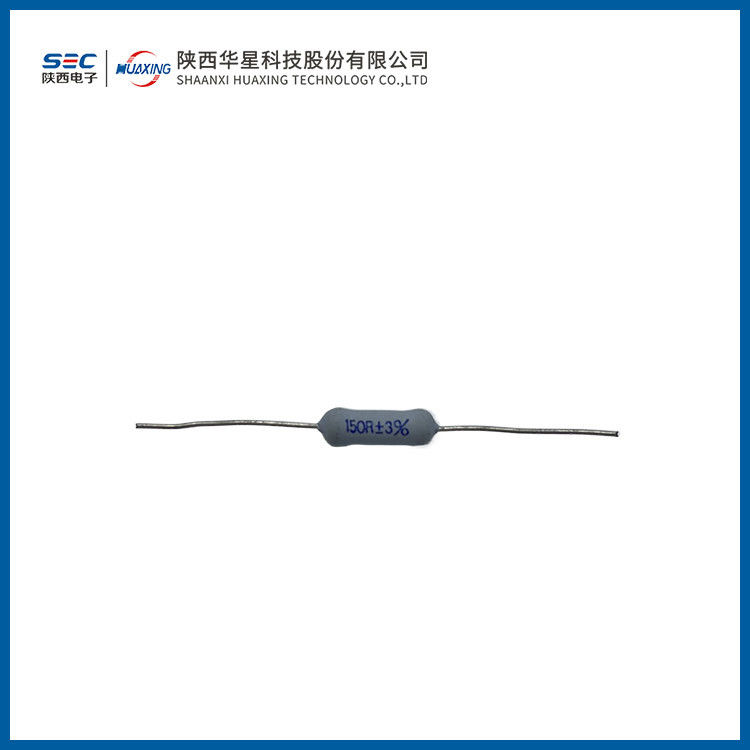

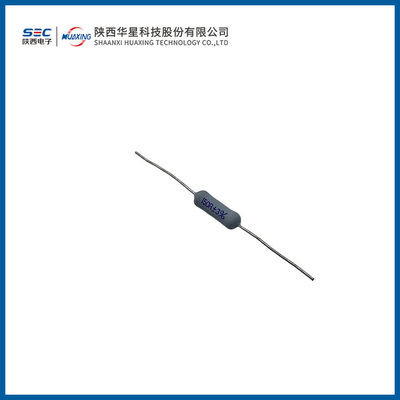

RY0992 type pulse fixed resistor
1. Purpose and characteristics:
small size, strong load capacity, good surge resistance and pulse resistance, used for load, discharge and damping in pulse voltage impact electronic circuits.
2. Packaging form:
gray and green insulation coating.
3. External size:
Note: The length of lead root paint should not exceed 2 mm.
|
70℃ down power rating (W) |
outline dimension mm | |||
| Lmax | D max | l | d | |
| 2 | 26.5 | 6. 5 | 28±2 | 0.8±0.05 |
| 2S | 17.0 | 6.5 | 28±2 | 0.8±0.05 |
4. Main technical indicators:
|
70℃ rated power dissipation W |
nominal resistance Ω |
nominal candle-power allowable deviation % |
limit voltage V |
Pulse limit voltage kv |
Resistance temperature characteristic ×10-6/℃ |
| 2 | 150~24K |
±1, ± 2 ±3, ± 5 |
750 | 6.0 | ±500 |
| 2S | 50~24K | 500 | 5.0 |
|
|
