| Brand Name: | HUAXING |
| Model Number: | RY0993 |
| MOQ: | 1 |
| Payment Terms: | T/T |

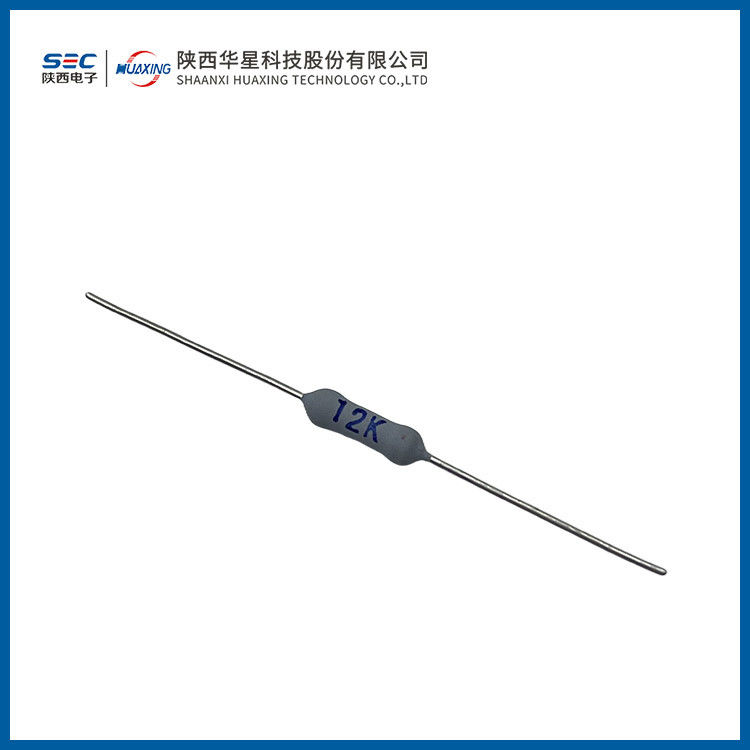

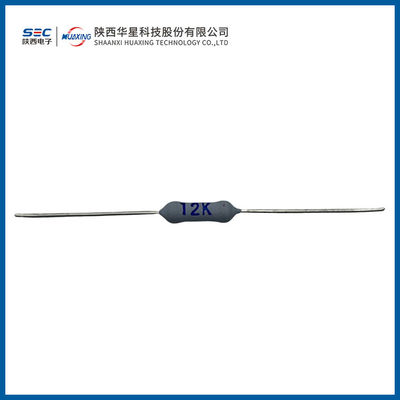

RY0993 type pulse oxide film resistor
1. Purpose and characteristics:
small size, strong load capacity, good surge resistance and pulse resistance, used for load, discharge and damping in pulse voltage impact electronic circuits.
2. Packaging form:
green insulating paint coating
3. External size:
Note: The length of the lead root paint should not exceed 2 mm.
|
Rated power consumption at 70℃ (WS) |
nominal candle-power Ω |
outline dimension mm | |||
| Lmax | D max | l | d | ||
| 2 | 50~510k | 17.0 | 6. 5 | 28±2 | 0.7±0.05 |
4. Main technical indicators:
|
70℃ rated power consumption (WS) |
nominal candle-power (Ω) |
Nominal resistance tolerance (%) |
Component limit voltage (DC or AC RMS) V |
Pulse limit voltage (kv) |
Resistance temperature characteristic ×10-6/℃ |
| 2 | 50~510k |
±1, ±2, ±3, ±5, |
500 | 5000 | 200 |
|
|
