| Brand Name: | HUAXING |
| Model Number: | RJ13,14 and 15 |
| MOQ: | 1 |
| Payment Terms: | T/T |

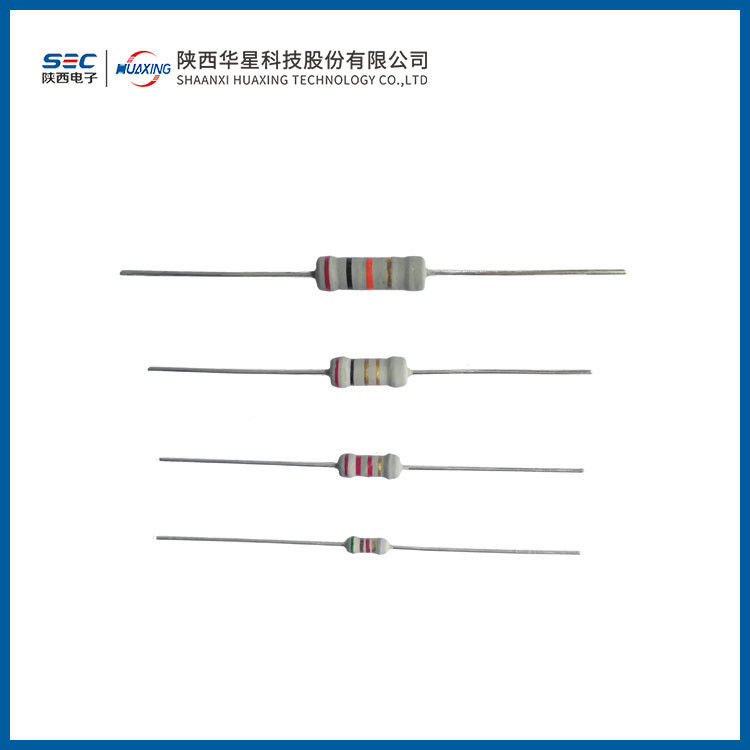

RJ13,14 and 15 metal film resistors
1. Purpose:
small temperature coefficient, used for sampling measurement.
2. Packaging form:
coated with gray insulation paint.
3. External size:
| model Type | Dmax (Φ)mm |
Lmax mm |
d (Φ)mm |
l mm |
| R J 13 | 2.1 | 3.8 | 0.45±0.1 | 26±3 |
| R J 14 | 2.5 | 7 | 0.5±0.1 | 26±3 |
| R J 15 | 3.9 | 10.5 | 0.56±0.1 | 26±3 |
4. Main technical indicators:
| model | Rated power (W) at 70℃ |
Temperature coefficient T.C.R (10-6/℃) |
Resistance range (Ω) | Resistance tolerance is permissible | Component limit voltage (d.c.or.a.c.rms) (V) |
Insulation voltage (d.c.or.a.c.peak) (V) |
| RJ13 | 0.167 |
±25 ±50 ±100 |
10-1M |
± 0.25% ± 0.5% ±1% ±2% ±5% |
200 | 300 |
| RJ14 | 0.25 | 4.7-2.2M | 250 | 350 | ||
| RJ15 | 0.5 | 10-3.3M | 350 | 500 |
|
|
