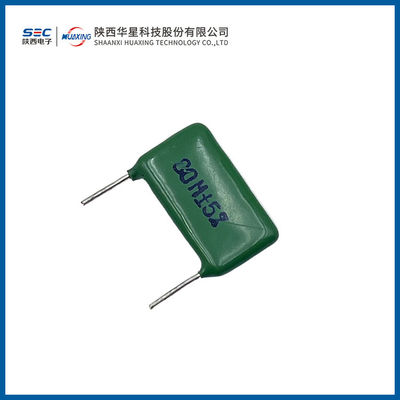

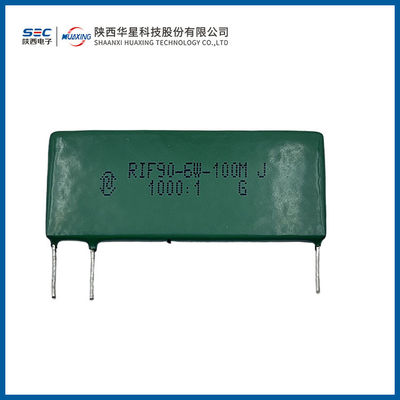

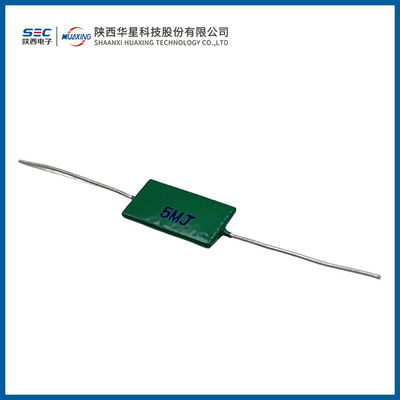

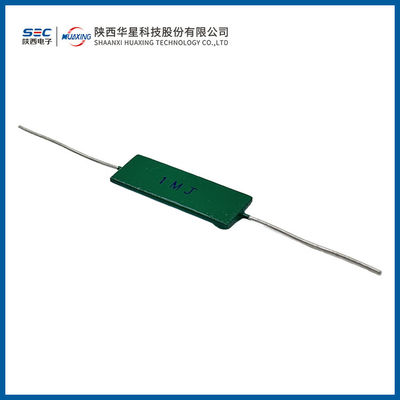

RI90 high voltage glass enamel film fixed resistor
1. Purpose and characteristics:
small size, temperature resistance, high pressure, overload capacity, can be used for ultra-high resistance, used in high voltage electronic circuits and so on
2. Packaging form:
green insulation coating.
3. External size:
| Rated single pulse power W at 70℃ | nominal candle-power Ω | Shape size (mm) | |||
| L | W | H | d | ||
| 1 | 10~50M | 22±2 | 12±2 | 2.5±0.5 | 0.8±0.05 |
| 2 | 10~100M | 32±2 | 12±2 | 2.5±0.5 | |
| 2.5 | 10~1G | 32±2 | 10±2 | 2.5±0.5 | 0.8±0.05 |
| 5 | 10~1G | 52±2 | 22±2 | 4±0.5 | 1±0.05 |
| 10 | 10~1G | 82±2 | 22±2 | 4±0.5 | 1±0.05 |
4. Main technical indicators:
| Rated (W) at 70℃ | Resistance range (Ω) | The allowable deviation of resistance is (%) | Temperature coefficient range (ppm/℃) | Component limit voltage (DC or AC effective) (V) |
withstand voltage (V) |
| 1 | 10-50M |
±1
±5
±10 |
±100
±350
|
1000 | 500 |
| 2 | 10-100M | 3000 | 500 | ||
| 5 | 10-1G | 10000 | 500 | ||
| 10 | 10000 | 500 | |||
| 2.5 | 5M | ±1 | ±350 | 5000 | 500 |
|
|
