| Brand Name: | HUAXING |
| Model Number: | RI0985 |
| MOQ: | 1 |
| Payment Terms: | T/T |

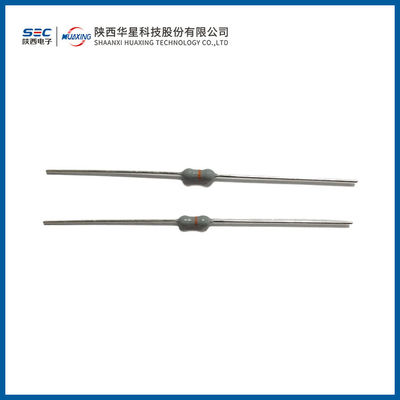

RI0985 type small high voltage resistor
1. Purpose and characteristics:
small size, temperature stability, used in high voltage electronic circuits, etc
2. Packaging form: gray insulation coating.
3. External size:
Note: ① lead
|
Rated power consumption at 70℃ W |
nominal candle-power Ω |
outline dimension mm | |||
| Lmax | D max | l | d | ||
| 0.25 | 15M | <7 | <2.5 | 28± 3 | 0.6±0.05 |
| 0.25 | 30M | <7 | <2.6 | 28± 3 | 0.6±0.05 |
4. Main technical indicators:
| 70℃ rated power consumption | Standard resistance | Nominal resistance tolerance | working voltage |
resistance-temperature characteristic ×10-6/℃ |
voltage coefficient ×10-6/V |
| 0.25W | 15M | ±3% | 1.5kV | ±200 | 50 |
| 0.25W | 30M | ±3% | 2.3kV | ±200 | 50 |
|
|
