| Brand Name: | HUAXING |
| Model Number: | RI52 |
| MOQ: | 1 |
| Payment Terms: | T/T |

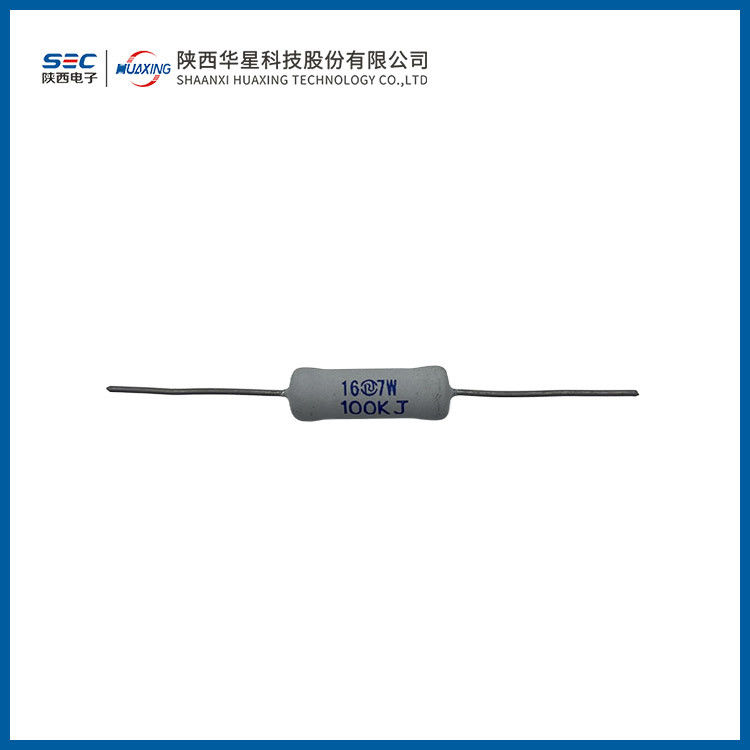

RI52 high temperature enamel resistor
1. Purpose and characteristics:
strong power load can work in low pressure and high temperature environment, used for aircraft parts.
2. Packaging:
coated with gray insulating paint
3. External size:
| Rated power (W) at 70℃ | maximum dimensions | l | d | |
| L | D | |||
| 3 | 16 | 6.5 | 28± 2 | 0.8±0.05 |
| 7 | 24.9 | 9.5 | 28± 2 | 1.0±0.05 |
4. Main technical indicators:
|
70℃ rated power consumption (W) |
nominal candle-power (Ω) |
Nominal resistance tolerance deviation (%) |
Component limit voltage (DC or AC RMS) V |
Resistance temperature characteristic ×10-6/℃ |
| 3 |
1kΩ~100MΩ
|
± 5 | 1200 | ± 350 |
| 7 |
|
|
